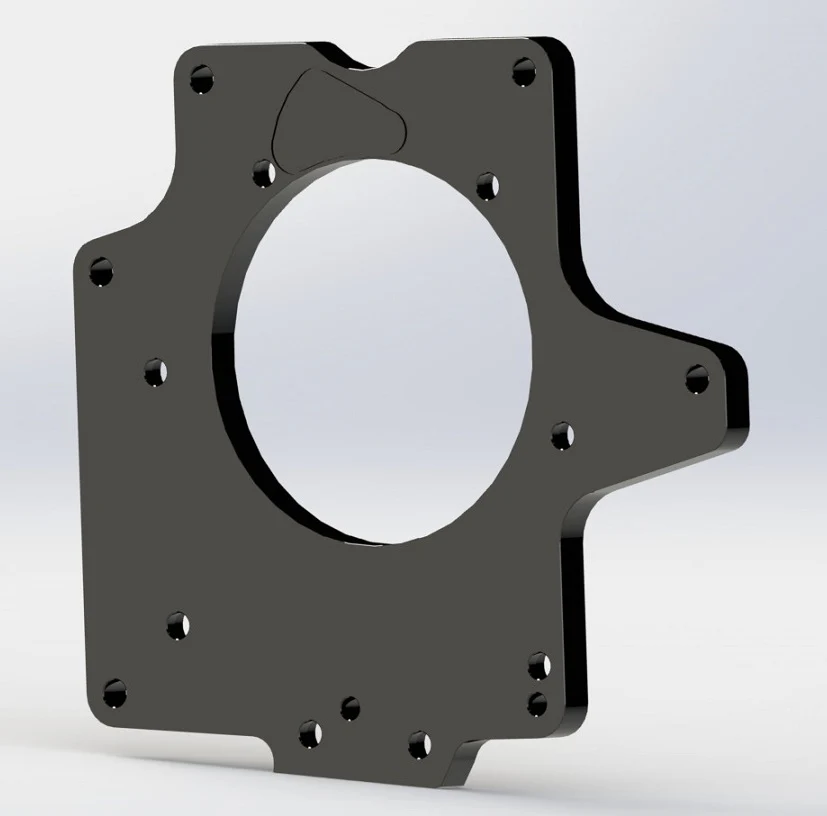

C6 Output Flange

This output flange bolts to the rear of the Edge manufactured C6 case.
Machined from 16mm thick 6061 T6 billet Aluminium.
It has an 1mm O-Ring groove cut in the top back face to seal the hole in the C6 case.
This flange is the same outside profile as the original Corvette C6 tailcase flange & has the same outer bolt pattern.
(Except we have removed the lower left wing).
It locates on the C6 case central location diameter & attaches with 8 x M10 capscrews.

NOTE:
This flange will require 8 x M10x25 capscrews to attach it to the C6 case.
This flange will not fit the original Corvette C6 tailcase.
The Corvette C6 tailcase has this flange integrally case as part of the housing.
This part is not required if ordering part C6 KIT.

A 50% deposit is required upon purchase of this item.
Delivery time will be approximately 3 months, (from 27/06/26).
Final payment will be due when ready to ship.



Part: C6 FLANGE
