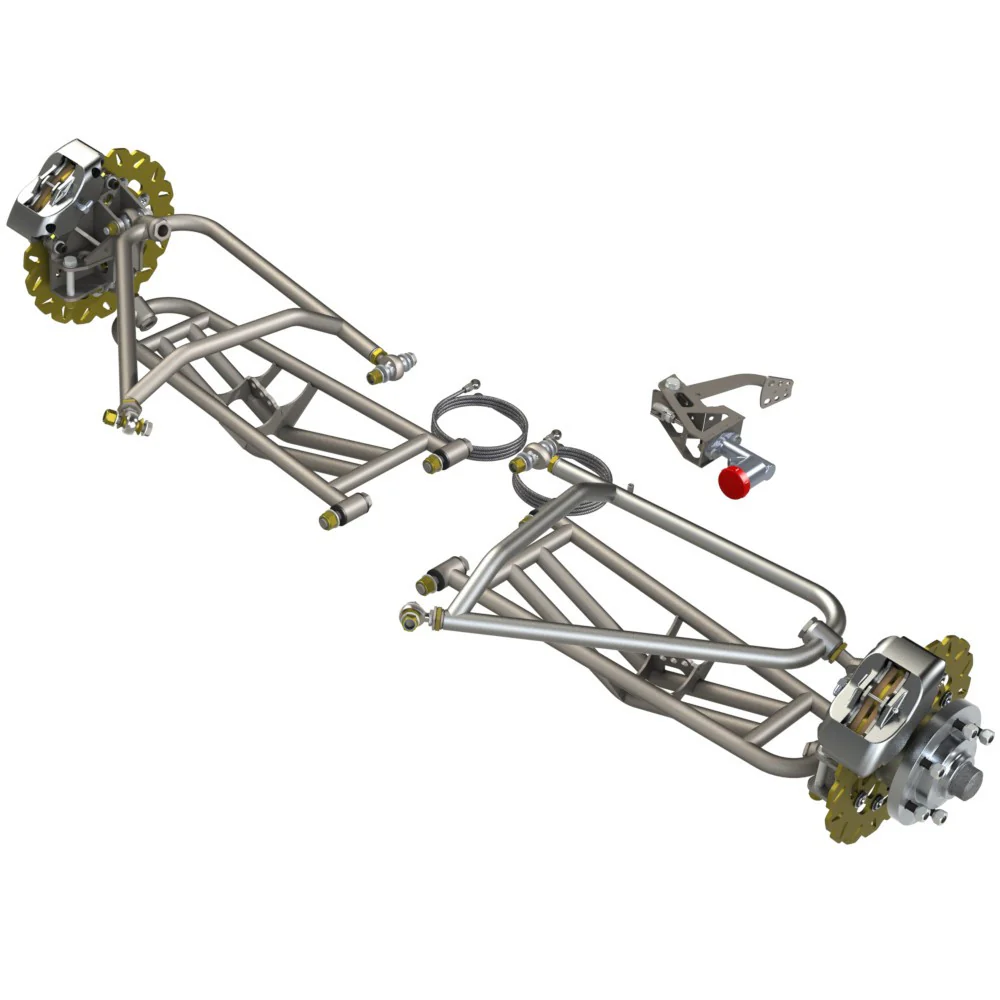

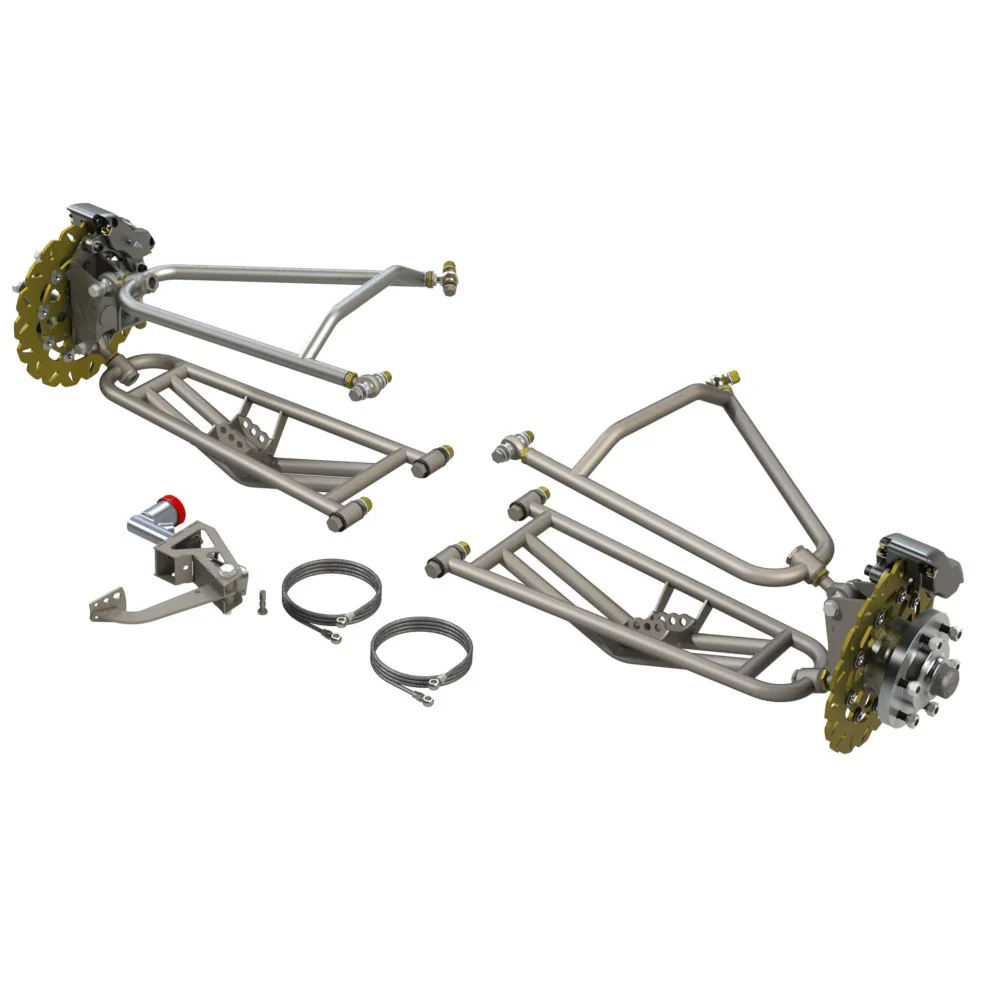

X2 Front Suspension Kitset

Front suspension kitset for the X2 buggy, including arms, uprights and brake components.

- X2 front brake kit - X2 BRAKE
- Pedal box with master cylinder
- Braided front brake hoses
- Double Banjo bolt
- Upper arm assemblies:
    - Upper suspension arms - X2-5
    - 5/8" UNF male rod ends (2) - 5/8ROD-2
    - 3/4" UNF male rod ends (4) - 3/4ROD-2
    - 5/8" rod end spacers (4) - CV2-19
    - 1/2" UNF male rod ends (2) - 1/2ROD-2LH
    - 1/2" rod end spacers (4) - 1/2SPAC
    - Caster adjuster nuts - BC5

    - Upper arm adjuster nuts - BC8

- Lower arm assemblies:
    - Lower suspension arms - BC6
    - Lower arm adjuster nuts - BC8
    - Suspension arm pivot bushes - BSH16-8
- 3/4" UNF male rod ends (4) - 3/4ROD-2
- 3/4" rod end spacers (8) - 3/4SPAC
- Upright pivot and steering arm bolts - BC12
- Lower arm pivot bolts - BC9
- Upper arm pivot bolts

The calipers used on these uprights require a 1" bore master cylinder (e.g. our 1" Pedal Box)

Part no. X2-21
