The Story

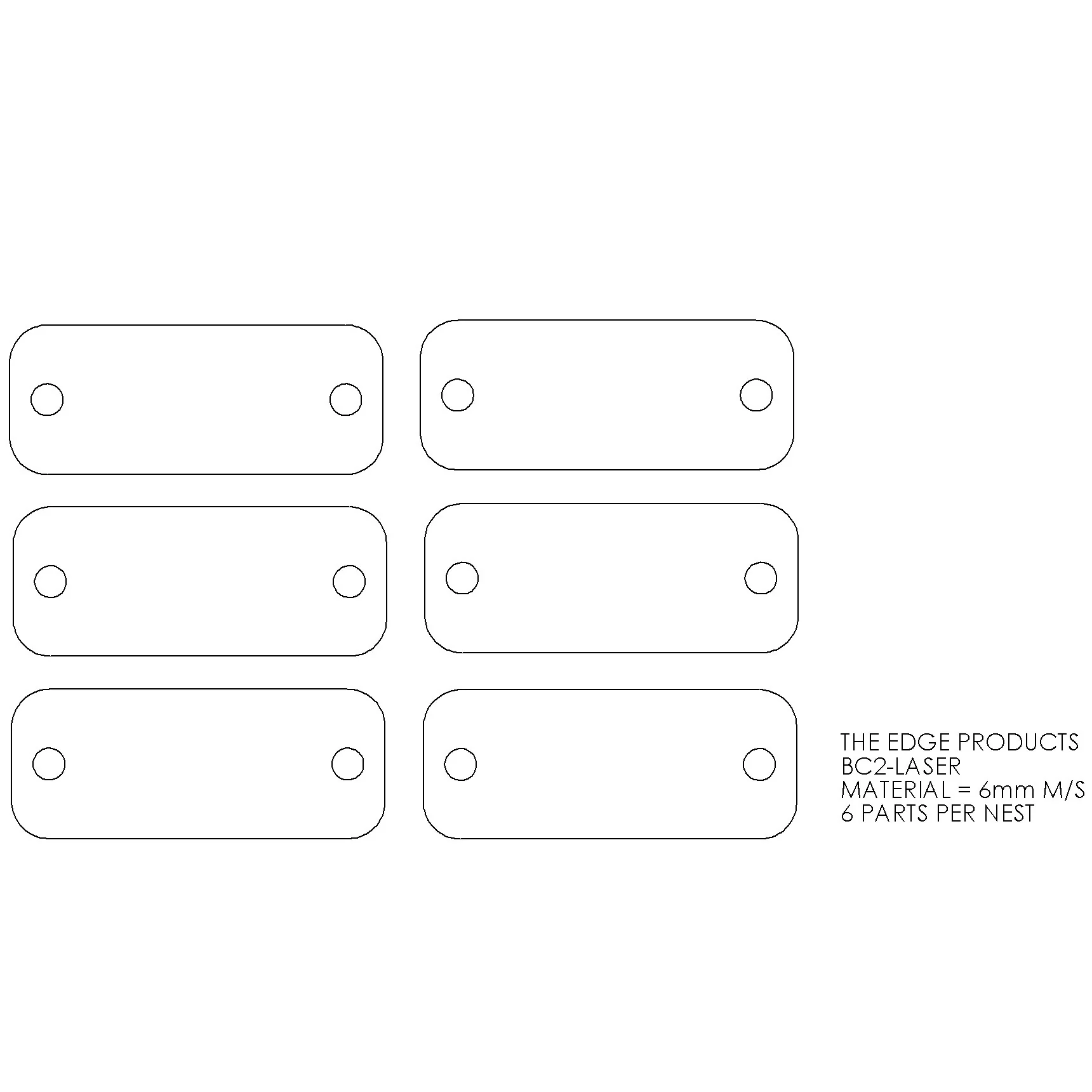

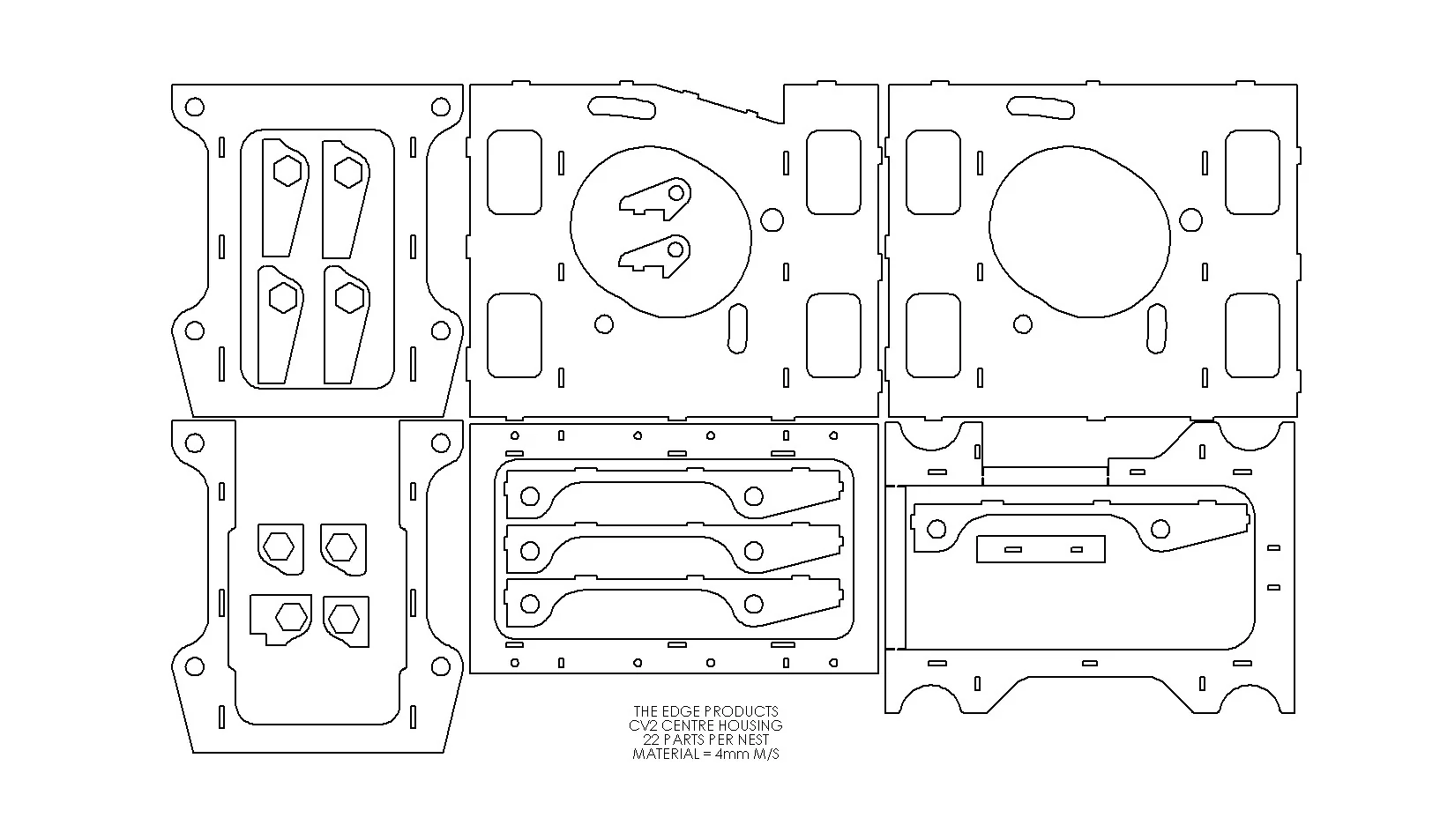

Laser cutting files for all of the mount brackets for the Barracuda chassis (Mk II).
This design is similar to the plans, but refined with a few holes to make the plates lighter as well as tagging together like a jigsaw puzzle. Updated to the Barracuda Mk II which includes a stronger rack mount, harness 5th-point mount and revised top suspension mounts (clips together with tags & holes).
Note, the Mk II modifications are still compatible with all Mk I chassis.
Part no. BARRACUDA-CHASSIS-BRACKETSLaser cutting files: the enclosed DXF file(s) should be provided directly to your local laser cutter. In order to view DXF files on your computer we recommend the free viewer DWGSee.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Laser cutting files for all of the mount brackets for the Barracuda chassis (Mk II).
This design is similar to the plans, but refined with a few holes to make the plates lighter as well as tagging together like a jigsaw puzzle. Updated to the Barracuda Mk II which includes a stronger rack mount, harness 5th-point mount and revised top suspension mounts (clips together with tags & holes).
Note, the Mk II modifications are still compatible with all Mk I chassis.
Part no. BARRACUDA-CHASSIS-BRACKETSLaser cutting files: the enclosed DXF file(s) should be provided directly to your local laser cutter. In order to view DXF files on your computer we recommend the free viewer DWGSee.
